Power Supply: AC100–240V or DC12–24V.
Display: LED digital tube display.
Measurement Accuracy: Class 0.25.
Input Channels: 4-loop and 6-loop.
Input Types: Thermocouple, thermal resistance, linear current input.
Control Output: Relay, solid-state relay drive voltage, transistor non-contact control output, etc.
Alarm Output: Up to 4 alarm outputs can be configured.
Communication Function: RS485, wireless IoT, Ethernet, and other communication options.
AiFUZZY8045/8065
4-Channel and 6-Channel DIN-Rail Mount Smart Temperature Controllers

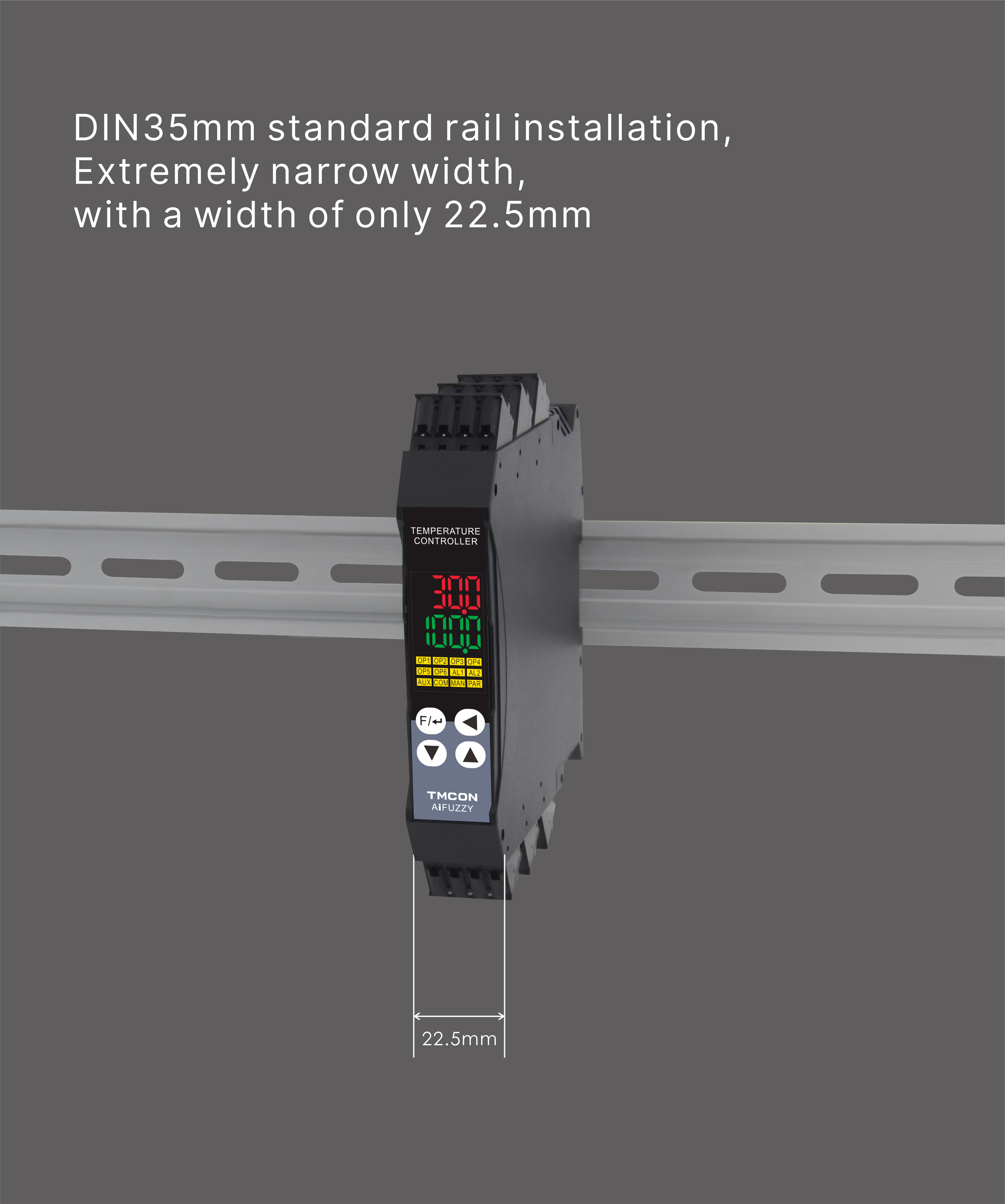

■ Ultra-narrow design with a width of only 22.5 mm per unit.
■ Integrated LED display module — the dual-row digital display and indicator lights are integrated
into a single LED digital display module utilizing high-brightness, long-life LED wafers.

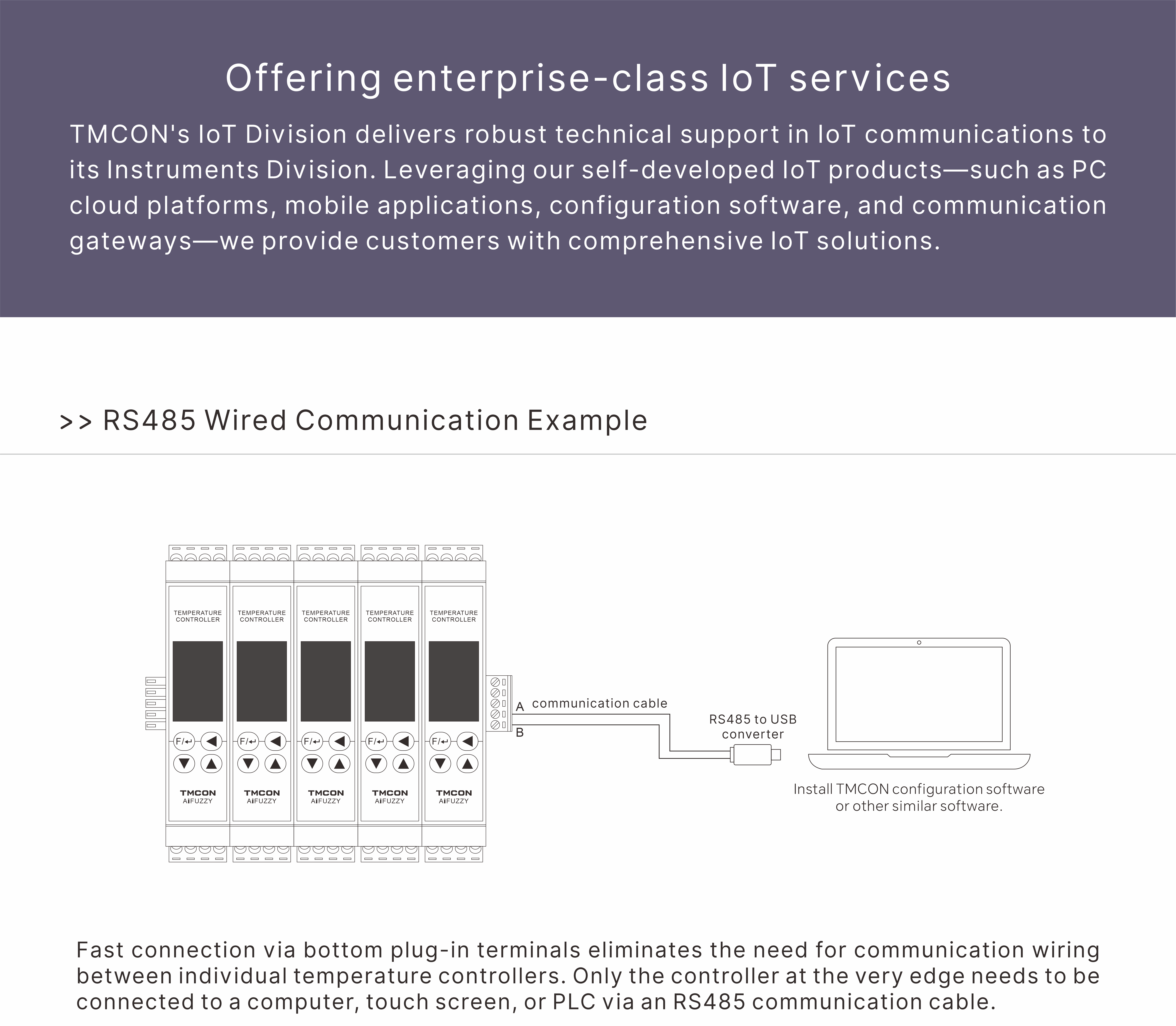

■ Quick connection via bottom plug-in terminals enables seamless splicing of multiple controllers,
eliminating the need for power and communication wiring between units.
■ Digital calibration technology ensures input measurement accuracy of 0.25% F.S. Each loop
supports independently configurable input types, including various thermocouples,two-wire RTDs,
and 4–20 mA analog signals.

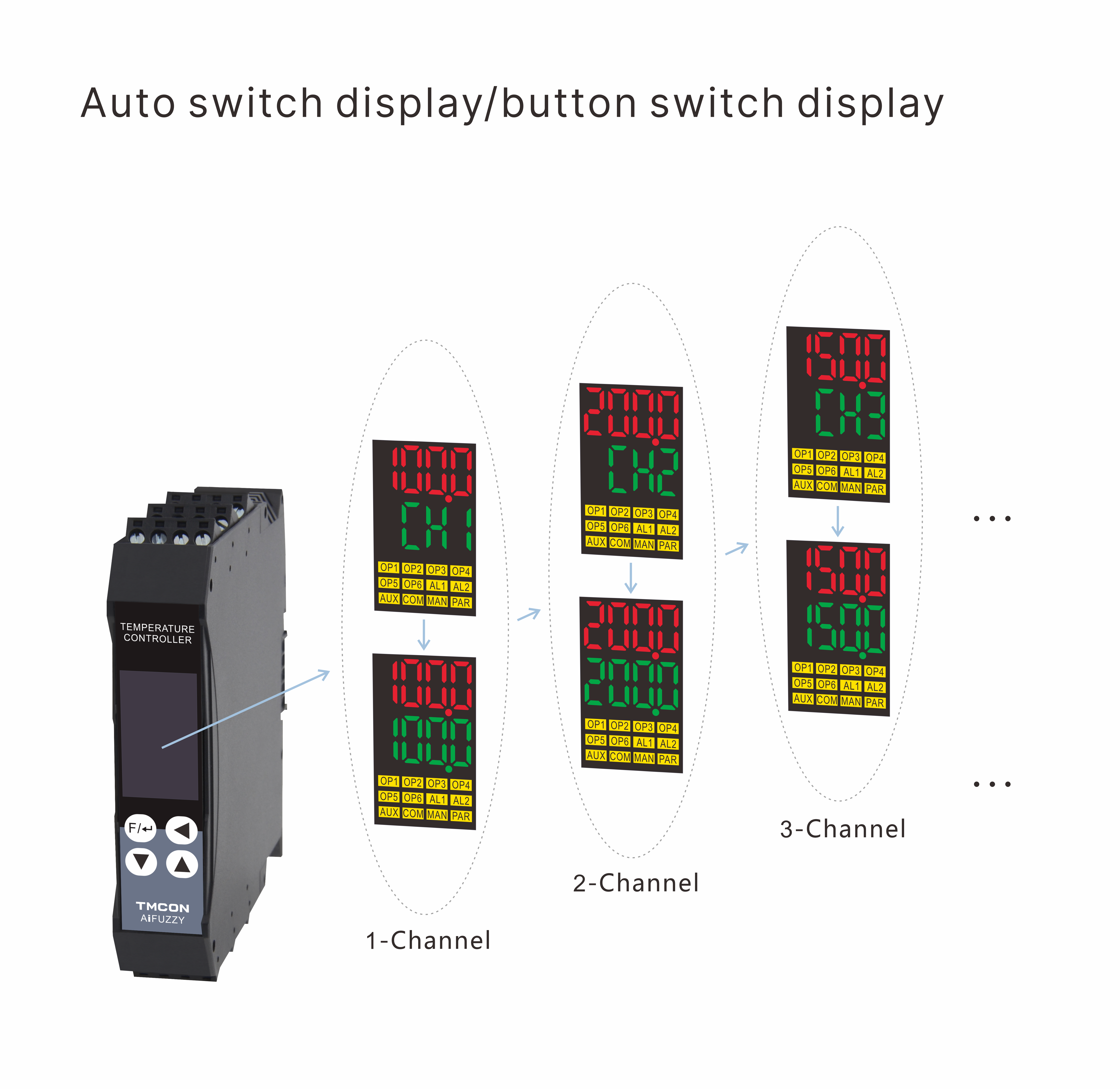

■ Automatic or manual channel switching provides intuitive multi-channel display and simple
operation.
■ Automatic cold junction compensation for thermocouple inputs. Each input loop is equipped
with digital filtering, with filter strength independently adjustable or capable of being disabled.
■ High-precision, low-temperature-drift components ensure measurement accuracy.Cross-channel
signal anti-interference design delivers multi-channel measurement precision and noise immunity
comparable to single-channel instruments.
■ Independent AiFUZZY artificial intelligence control algorithm for each loop, seamlessly
combining fuzzy logic with adaptive PID control. It delivers no overshoot or undershoot and
achieves excellent control even for complex processes involving significant lag or external
disturbances.

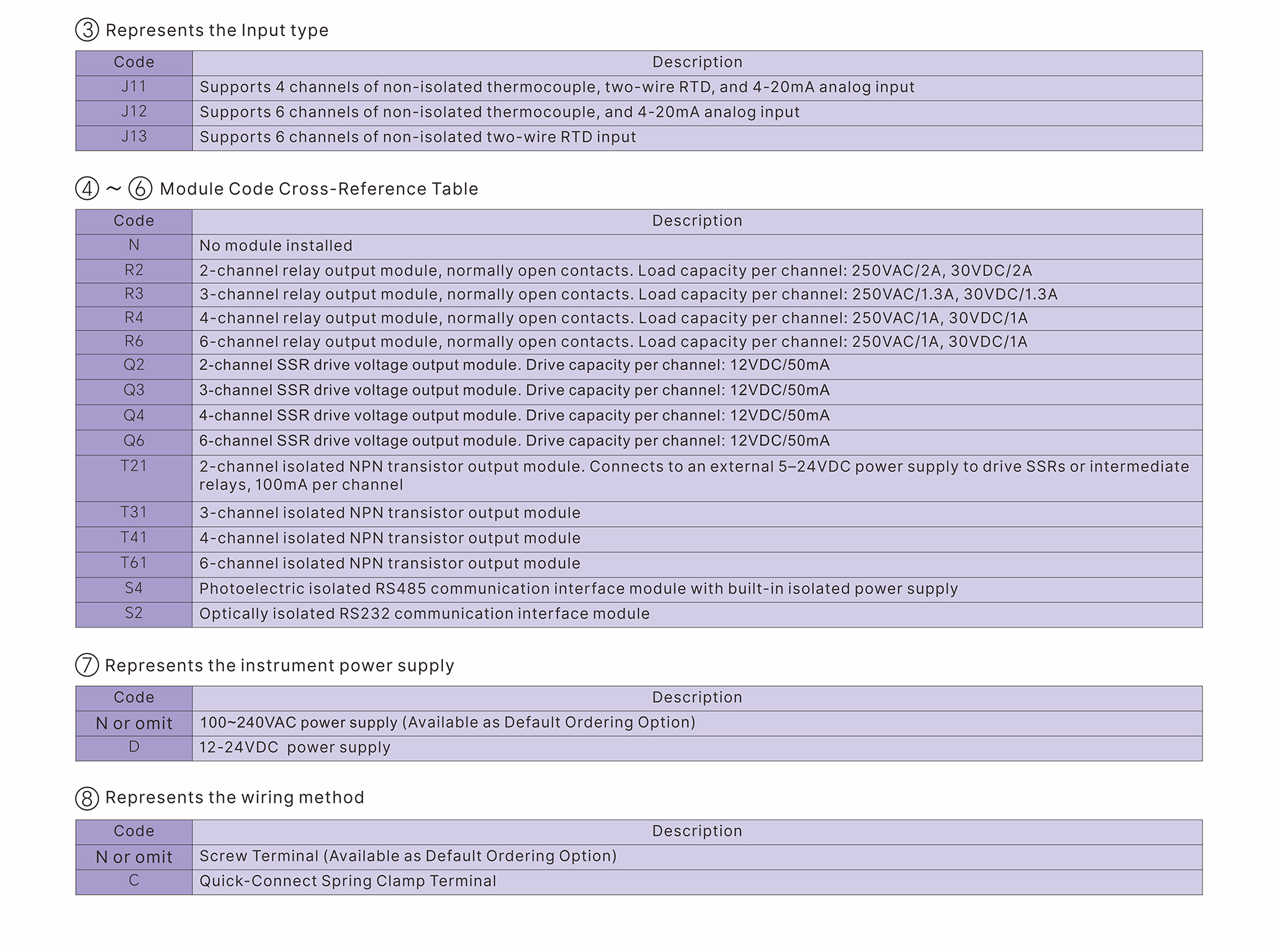

■ Multiple output modules available: relay contact output, SSR drive voltage output, and
transistor (NPN) non-contact switching output.
■ Each loop supports independently configurable high and low alarm limits, with alarm output
assignment (AL1~AL4) programmable.
■ Up to 12 on-site parameters can be selected via programming for operator access,while all other
parameters are password-protected. This ensures the instrument delivers powerful functionality
while remaining simple and easy to operate.
■ RS485 communication interface with Modbus RTU protocol support.

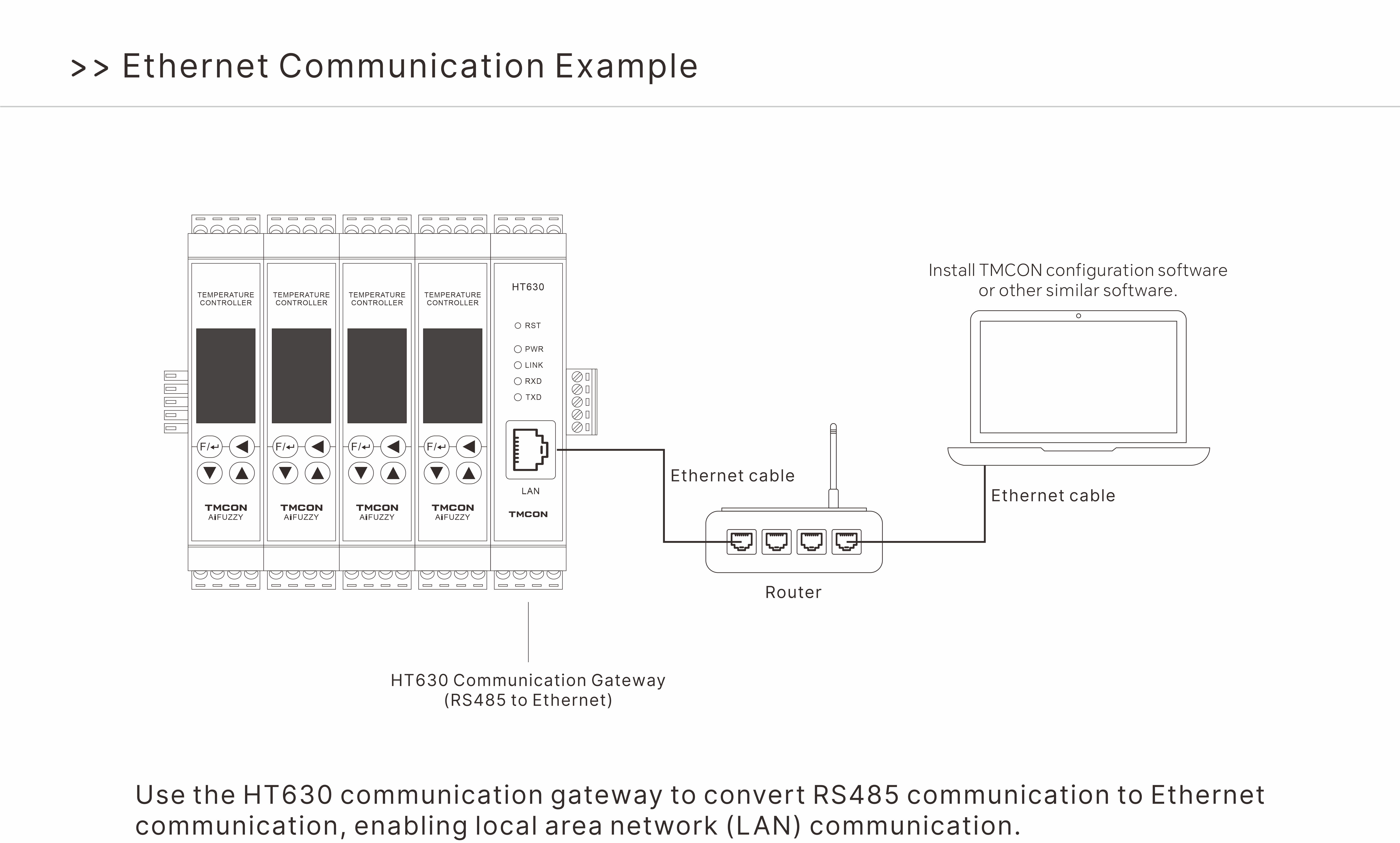

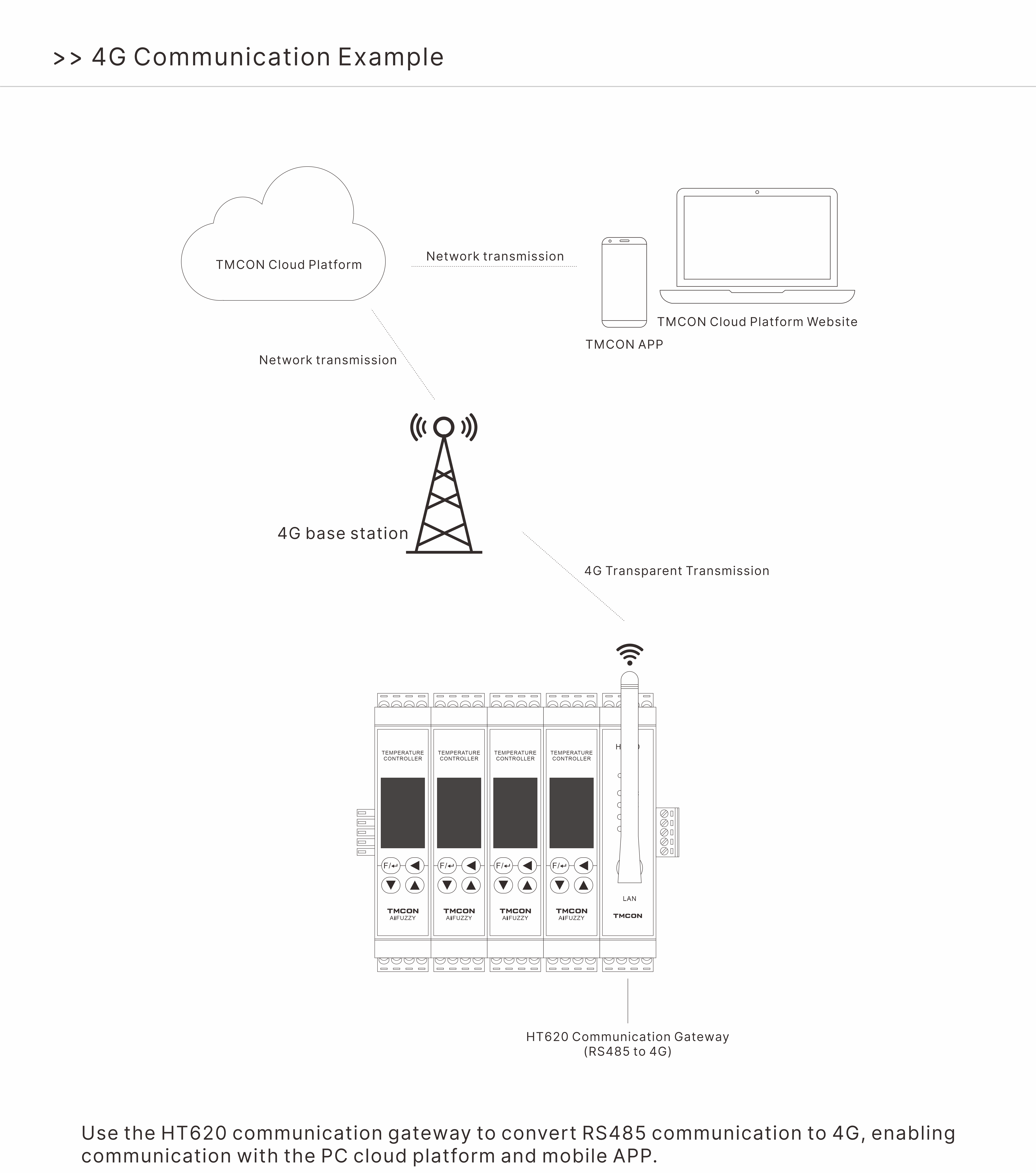

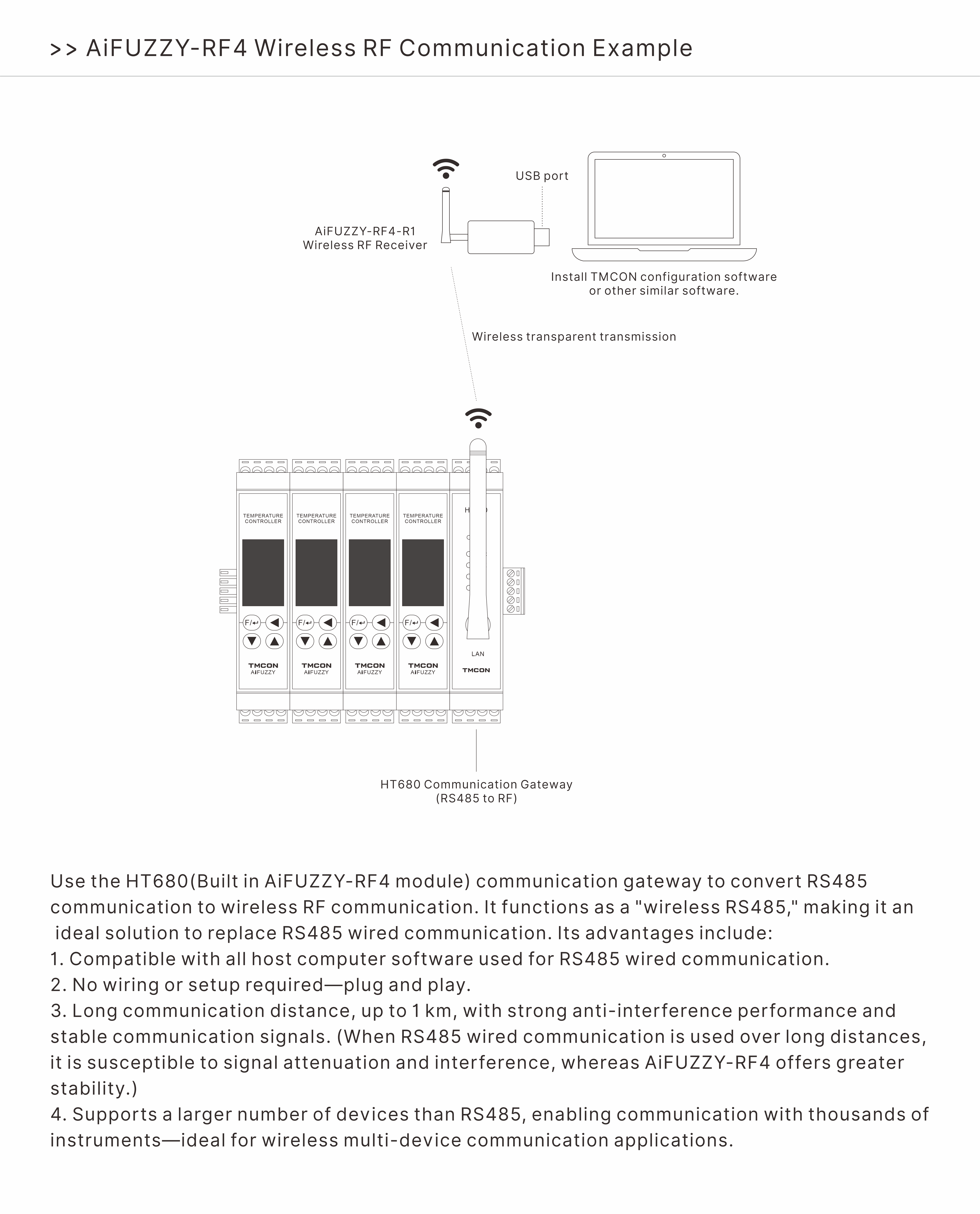

■ Seamless communication conversion — RS485 communication can be converted to Ethernet,
WiFi, or wireless RF communication using the HT630, HT620, and HT680 communication gateways.
■ High-performance power supply ensures protection against overvoltage, overcurrent,surges, and
electromagnetic interference.

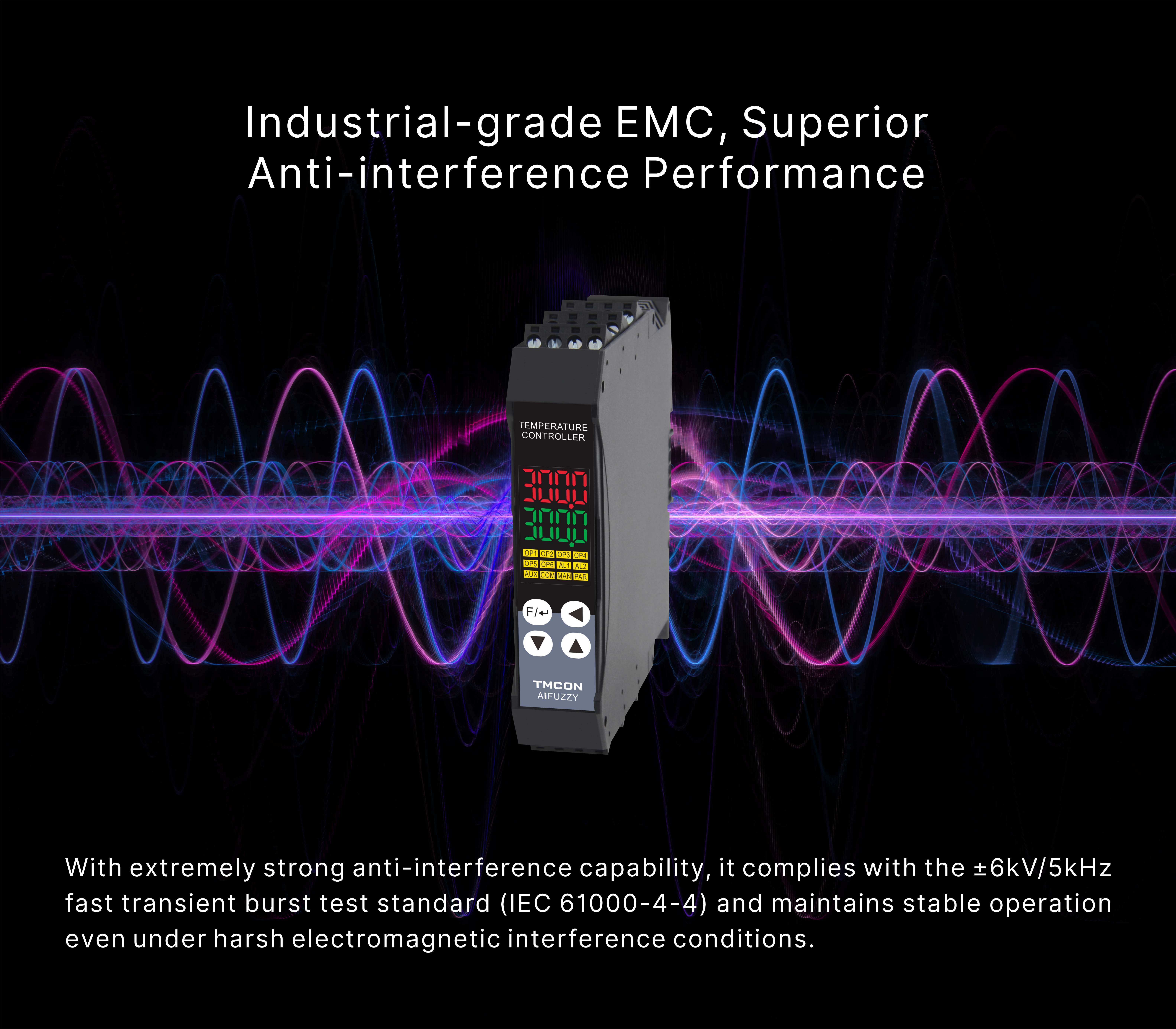

■ Industrial-grade EMC design delivers extremely strong anti-interference performance.
